Portable curve woodworking edge banding machine
ordering hotline:18029363170
Customized consultation, quick response>>
  • Detailed

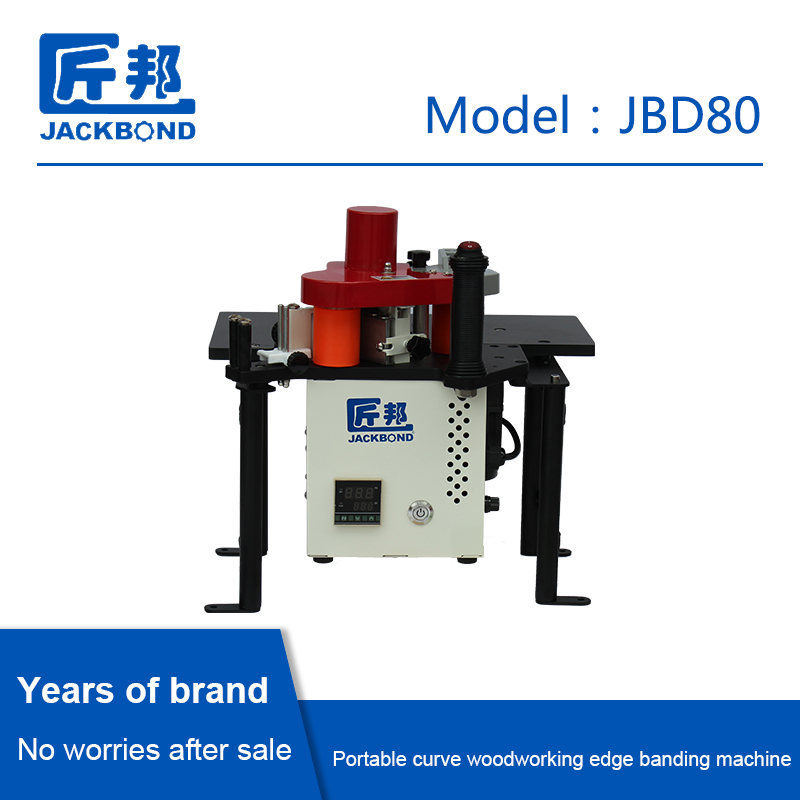

foshanPortable wood edgebander woodworking mechanical manual edge banding machine

JBD80 is a portable edge banding machine using thermal-smelting glue. It uses PVC, ABS, melamine, wooden bands, which have been pre-cut into appropriated length, to band straight , curved and bevel edge. For small curved or straight board, the machines can be fixed on the console to execute edge banding operations easily. For large-area curved or straight board, user can hang the machine above the board to execute banding operations. This machine is compact, handy and flexible, easy to operate and provides perfect edge banding effect. It is an ideal choice for manufacturing and decoration work.

Product name

JBD80

Net Weight

9.5kg

Size

340×310×350MM

Total power

765watt

Voltage

220V/110V,50~60HZ

Edge thickness

0.3-3(mm)

Edge width

10-45MM

Processing rate

5meter/min

Temperature

120-180℃

Forms of glue

single-siged glue

Gross Weight

14kg

Package Volume

38×30×42CM


foshanPortable wood edgebander woodworking mechanical manual edge banding machine

foshanPortable wood edgebander woodworking mechanical manual edge banding machine

Jackbond JBD80 contains accessories including: installation tools, power switch, fuse, trial rubber bag, manual and video CD.

foshanPortable wood edgebander woodworking mechanical manual edge banding machine

The portable edge banding machine can be placed on a small gantry for desktop wood edge sealing work. This operation is suitable for small wood edge sealing.

foshanPortable wood edgebander woodworking mechanical manual edge banding machine

The following is the rendering of the edged wood board. The Jackbond edge banding machine is suitable for PVC edge banding, ABS edge banding, veneer edge banding, wood for NDF board, ecological board, particle board, wooden door, honeycomb board and other wooden boards.

foshanPortable wood edgebander woodworking mechanical manual edge banding machine

The board can be fixed in place while the hand-held edge bander proceeds.It can also be used for small sized wooden boards while the machine is fixed onto a conveyor belt or table with stand. The process of edge banding is the same for normal sized loads.

Our advantage:

1. We have a professional research & development team to improve our machines and create new machines according to customers request.

2. The electronic components are certified by the European Union, and about the core electrical components, we use Schneider ,all of which are high quality components.

3. Our products are self-developed and the core components are in stock, so we can guarantee delivery on time.

4. We have a professional pre-sales and after-sales service team to provide you with quality service.

5. We have 11 years of experience in manufacturing of woodworking machinery, and the quality of our products is more secure.
