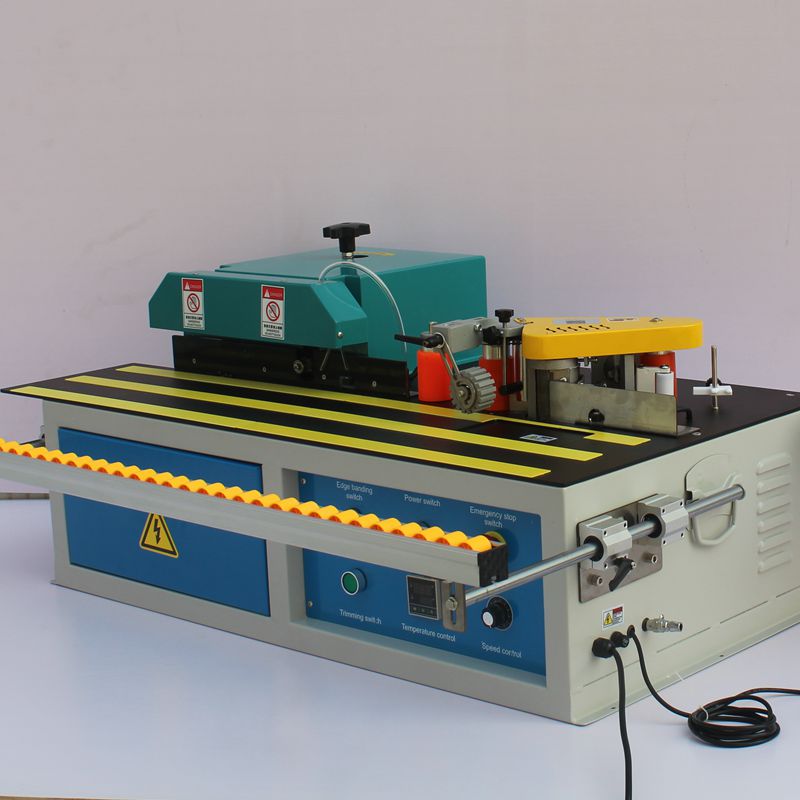

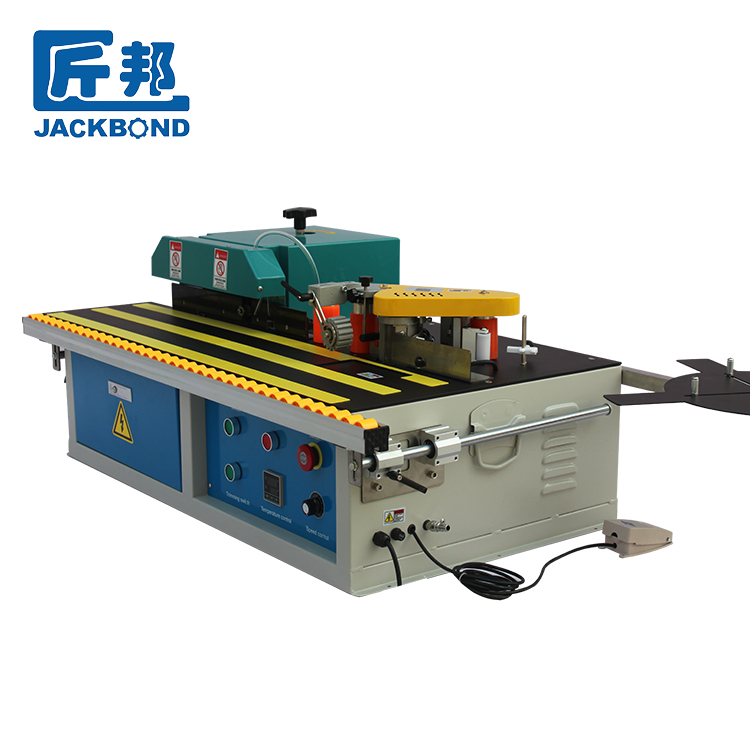

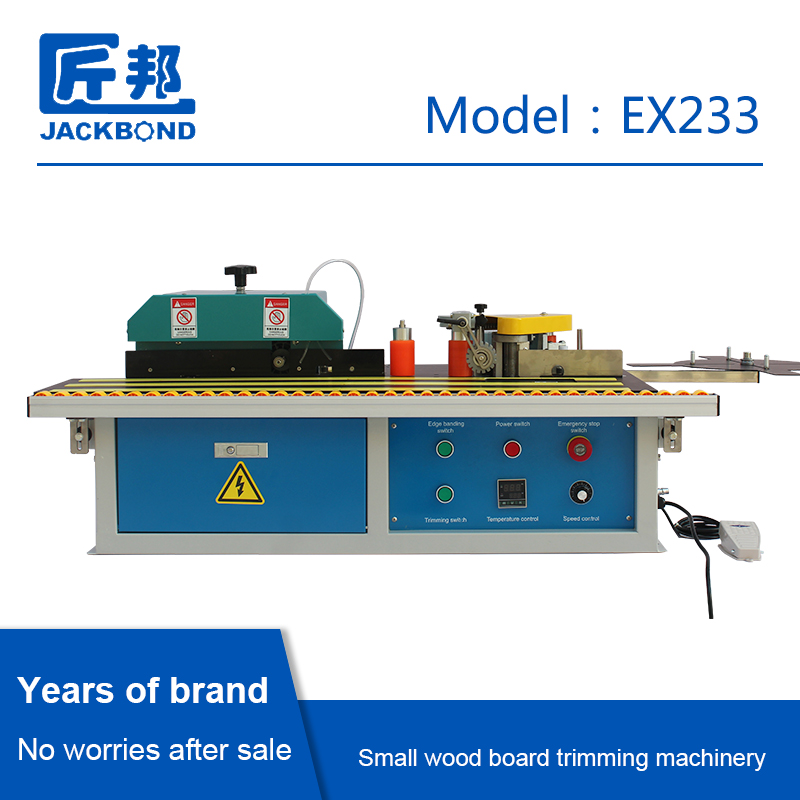

EX233 is an edge-sealing and trimming machine using hot melt adhesive. It uses PVC, ABS, melamine, wood strips (pre-cut to the appropriate length) to tighten straight, curved edges. It can be glued on both sides, and it can also adjust the speed, and the user can operate freely. Whether it's for small planks or for large-area planks, the planks can be attached to the console for easy edge banding and trimming. The machine is compact, convenient, flexible, easy to operate and provides perfect edge sealing and trimming. It is ideal for manufacturing and decorating work.
Brand | Jackbond |
Forms of work | Semiautomatic |
Size | 1150×720×530MM |
Maximum processing width | 10-60(mm) |
Maximum processing length | Unlimited(mm) |
Maximum processing thickness | 0.3-3(mm) |
Scope of application | Wood edge banding machine + upper and lower trimming |
Voltage | 220V/110V |
Net weight | 69kg |
Gross weight | 74kg |
unit | 1 set / box |
Jackbond EX233 contains accessories including: installation tools, power switch, fuse, trial rubber bag, manual.

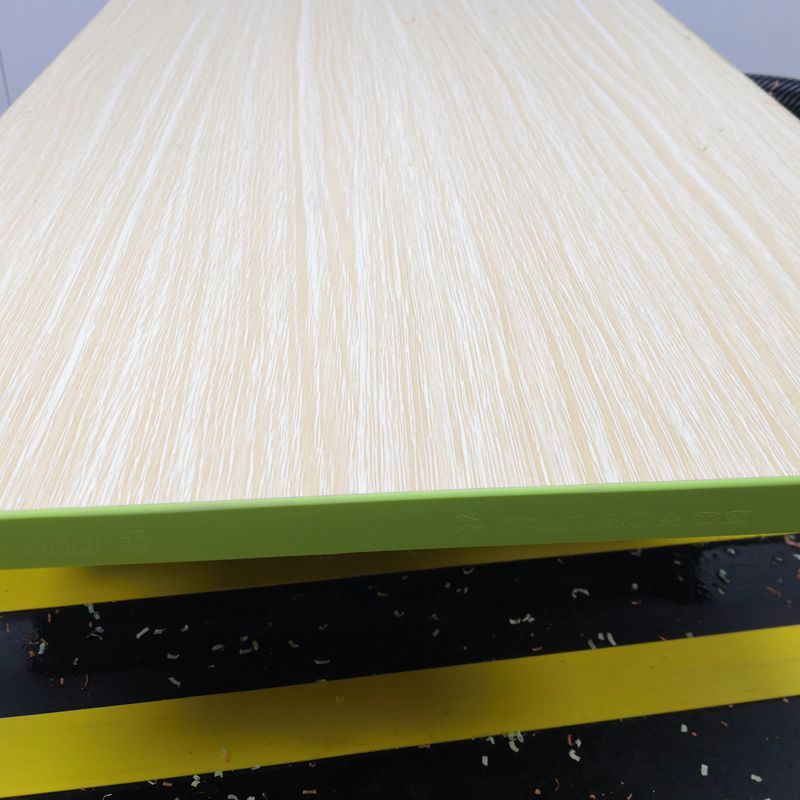

The following is a rendering of a side plank. Jackbond edge banding machine is suitable for edge sealing and trimming of PVC edge banding, ABS edge sealing, veneer edge sealing, NDF board, ecological board, particle board, wooden door, honeycomb board and so on.

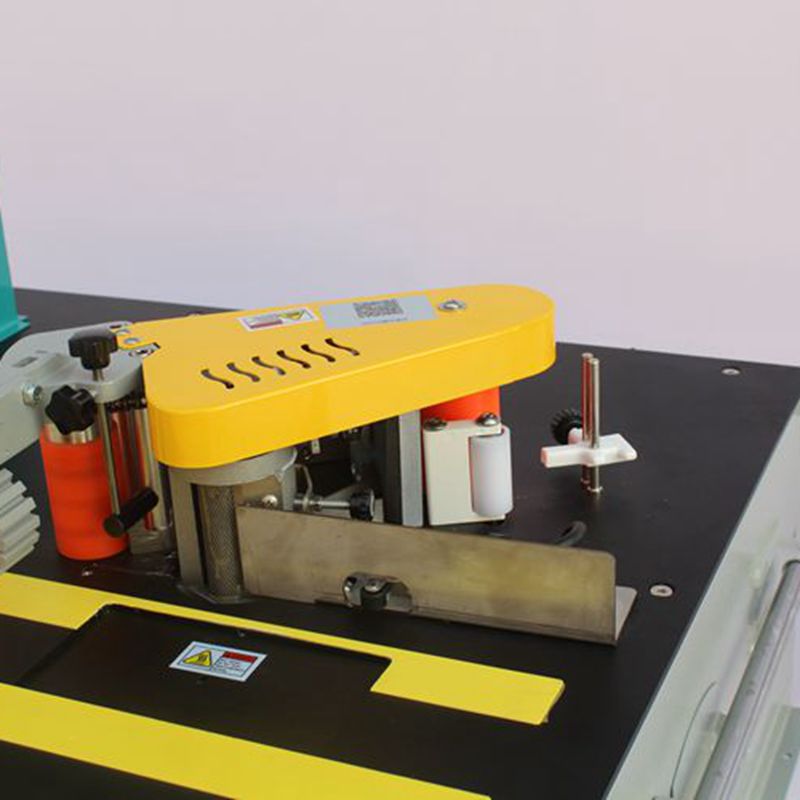

The EX233 has been designed with an enlarged pulley table for large wooden edge sealing for lighter operation.
Our advantage:
1. We have a professional research & development team to improve our machines and create new machines according to customers request.
2. The electronic components are certified by the European Union, and about the core electrical components, we use Schneider ,all of which are high quality components.
3. Our products are self-developed and the core components are in stock, so we can guarantee delivery on time.
4. We have a professional pre-sales and after-sales service team to provide you with quality service.
5. We have 11 years of experience in manufacturing of woodworking machinery, and the quality of our products is more secure.
